P15 Ultra-Thin Flexible LED Screen

The P15 ultra thin flexible LED screen has extremely high flexibility and can meet the needs of customers who want to build some strange-shaped LED screens. It can also be customized according to the installation location.


Inquire NOW PDF

Product Profile

P15 Adhesive ultra-thin flexible led screen is a new type of display technology, which has the characteristics of high transparency, bright colors, and high brightness. comes with up to 90% transparency and at the same time offers full display properties.At first glance, you do not see any wires between the LED modules. When the P15 ultra-thin flexible led screen is off, the transparency is almost perfect.
* Slim & Soft for Creative Design,Ultra-thin and ultra-light
* Easy Installation & Anti-UV, self-adhesive Film which paste on the glass without frames or other gaps.
* Flexible during installation, the size and layout of the P15 ultra-thin flexible led screen can be customized to suit different installation areas.
* Sufficient brightness,Excellent color performance


Features


LED High transmittance Easy to install AB version


light drive in one,

independent research and
development, high reliability,

mini LED device, industry leading

The transmittance is
more than 90%,
which does not affect
the glass daylighting
without steel structure,
just stick the thin screen
slightly and connect the
power signal
Flexible Light and thin UV resistance Flame retardanyt


for any surface

as thin as 2.5mm, as light as 5kg/ 5~10 years can ensure no yellowing flame retardant grade V1


Parameter

Module size (mm) 990*390 Peak power 600w/㎡
LED light REE2022 Average power 200w/㎡
Pixel composition R1G1B1 Work environment Temperature -20-55
Humidity10-90%
Pixel spacing (mm) 15*15 Weight 1.3kg
Module pixel 66*26=1716 Thickness 2.5mm
Pixel/㎡ 4356 Drive mode static state
Brightness 2000/4000 Control system Nova/Colorlight
Permeability 94% Typical value of life 100000H
Angle of view ° 160 Grayscale level 16bit
input voltage AC110-240V50/60Hz Refresh rate 3840Hz



thin flexible led display

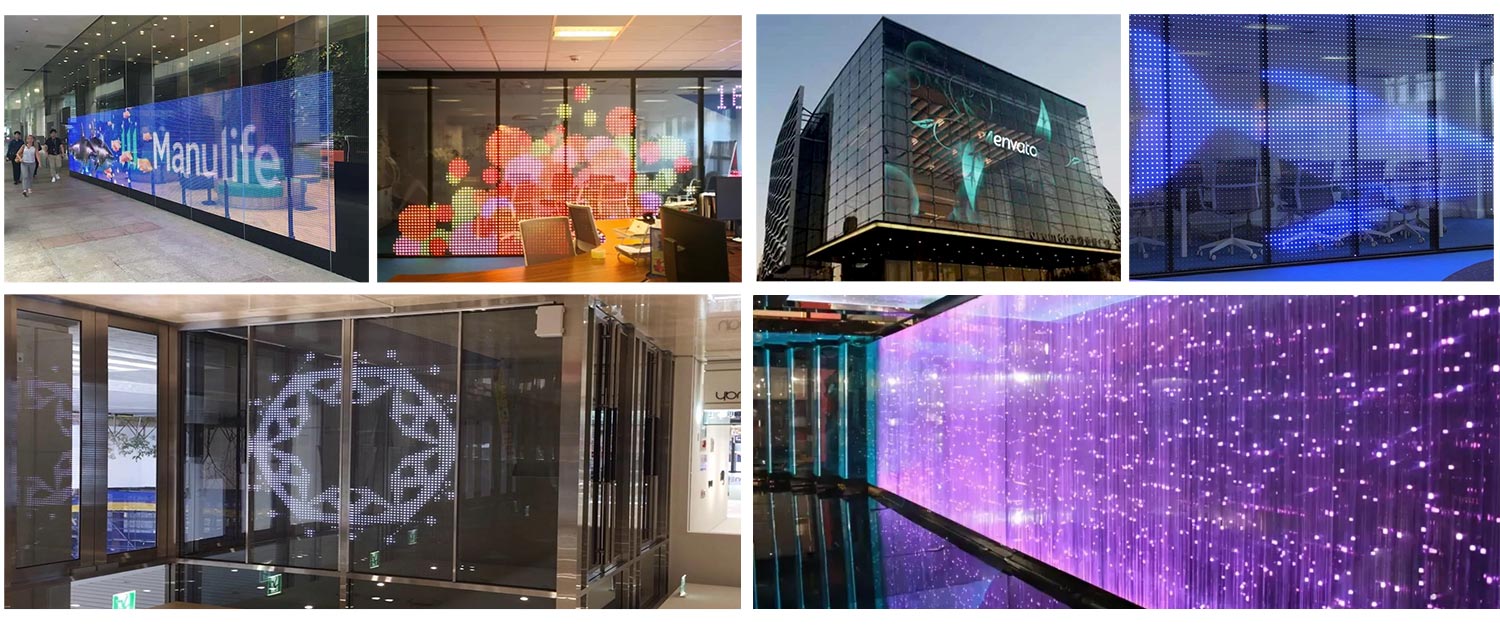

Application:

Ultra Thin Flexible LED display




What is an Ultra-Thin Flexible LED Screen?

An Ultra-Thin Flexible LED Screen is a display technology that combines flexibility and high-resolution visuals. These screens are made from lightweight materials, allowing them to bend and conform to various shapes and surfaces. They are ideal for applications in advertising, architecture, and innovative design, providing a seamless viewing experience.

What is the lifespan of an Ultra-Thin Flexible LED Screen?

The lifespan of an Ultra-Thin Flexible LED Screen can vary based on usage and environmental conditions, but they generally have a lifespan of 100,000 hours.

What are the advantages of using Ultra-Thin Flexible LED Screens?

The advantages of Ultra-Thin Flexible LED Screens include their lightweight design, which makes installation easier, and their ability to fit into unconventional spaces. They offer high brightness and contrast ratios, ensuring vibrant images even in well-lit environments. Additionally, their flexibility allows for creative installations that traditional screens cannot achieve.

How do Ultra-Thin Flexible LED Screens compare to traditional LED screens?

Compared to traditional LED screens, Ultra-Thin Flexible LED Screens offer greater versatility in terms of shape and installation. While traditional screens are typically rigid and limited to flat surfaces, flexible screens can be curved or shaped to fit unique designs. This flexibility often results in more engaging and immersive visual experiences.
